g-300-10m gherardi

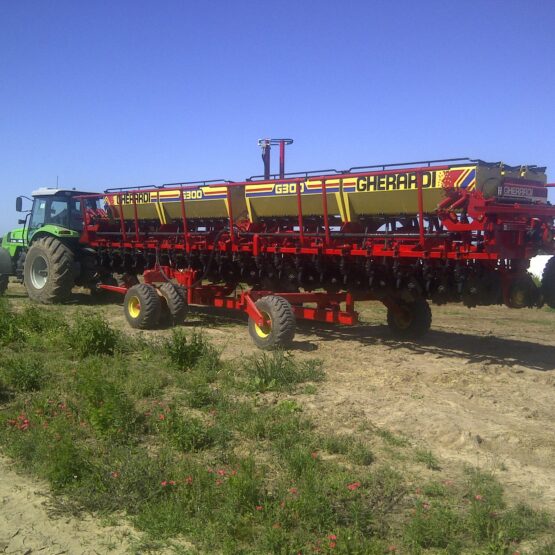

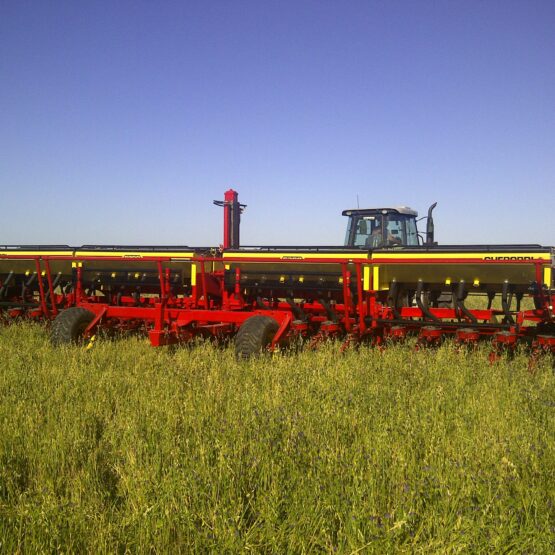

G-300 AUTOTRAILER PLANTER for coarse grain – 10 meters

Mechanic dosimeter: horizontal plate with side discharge tube.

Vaccum pneumatic dosimeter: Turbine control system.

Rows to 70 cm (27,5 in.) 52,5cm (20,67 in.) Tyres: 4 rims for 400/60 x 15,5” tyres (2 front self-guided tyres) (2 rear tyres mounted on tilted bar) Hydraulic chassis turn. Drive: 2 rims for 650 x 16 tyres. Plain double discs 15”.Attached wheels for depth control. Seed compacting wheel and covering angular wheels. Turbo blades for direct drilling (no till). Hydraulics markers. Cylinders and hoses . Hopper for seeds and fertlizers. 3 plates to select.

Description

G-314 y G-316

  • 18 rows to 52.5 cm (20.67”)
  • 20 rows to 52.5 cm (20.67”)
  • 6 wheels 400/60 x 15.5 “ (4 front and 2 rear)

Additional attachments:

  • Chisel to clean rows.
  • 1 Hopper for fertilization on the seeding row or fertilization lateral.
  • 2 Hoppers for fertilization on the seeding row and fertilization lateral.
  • Openers 15/17” for fertilization lateral to the seeding row.

Optional:

  • Turbine control system: Hydraulic system
